Trim-able Ends
Trim Fit trim-able ends are now supported.
Adding Trim-able material:
Select Presets --> System

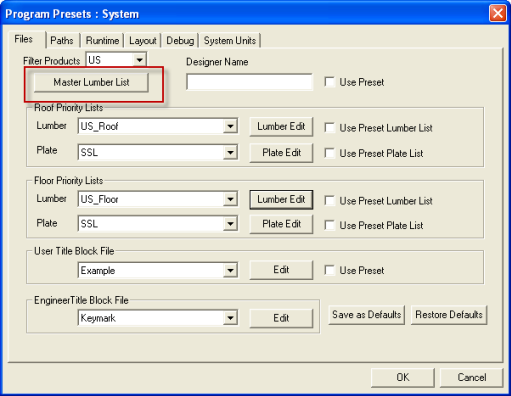

Press the Master Lumber List button
Then select Trim Fit as the product type and press Add

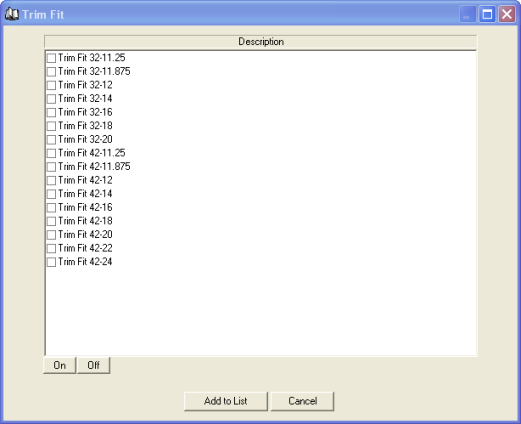

Select the specific sizes desired from the list

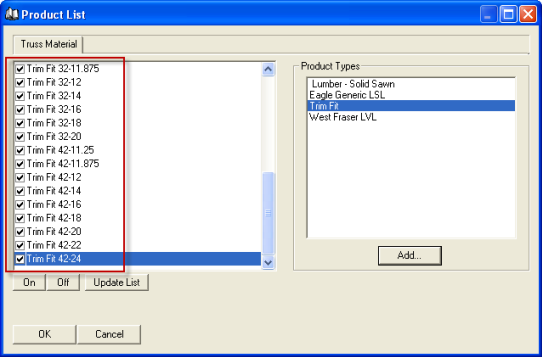

The Trim Fit Material is now in your master lumber list
Adding Trim Fit products to the Floor Priority List::
Presets --> System

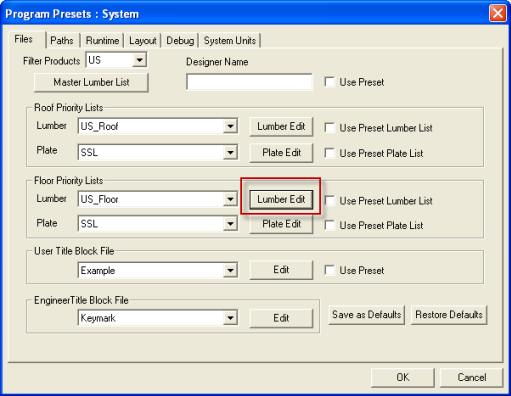

Press the Lumber Edit button in the Floor Priority Lists area:
Add to an existing priority list or create a new one as you normally would.

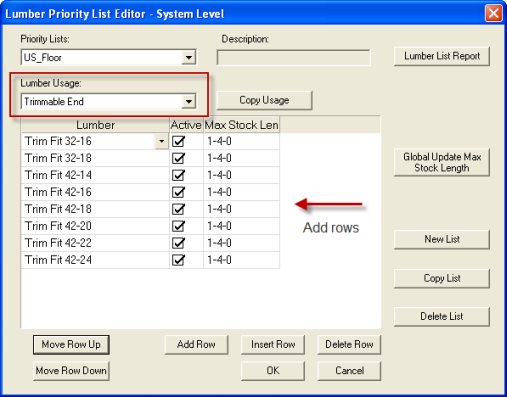

Click the down arrow for Lumber Usage and select Trimmable End
Add as many rows as desired
Press OK
Press Save as Default on the System Preset Screen
Press OK
Material setup is now complete and the products are ready to be used with floor trusses.
Setup Pricing:

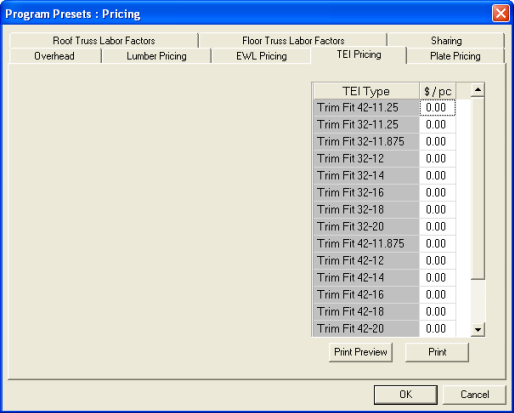

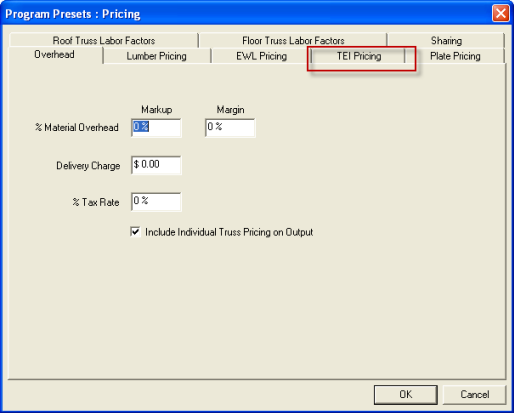

Presets --> Pricing --> TEI Pricing tab
The material that have been added to the Floor Priority List will display and pricing per piece can be edited.
Press OK
Adding Trim-able ends to a floor truss:
Create a new floor truss or select a floor truss previously created.

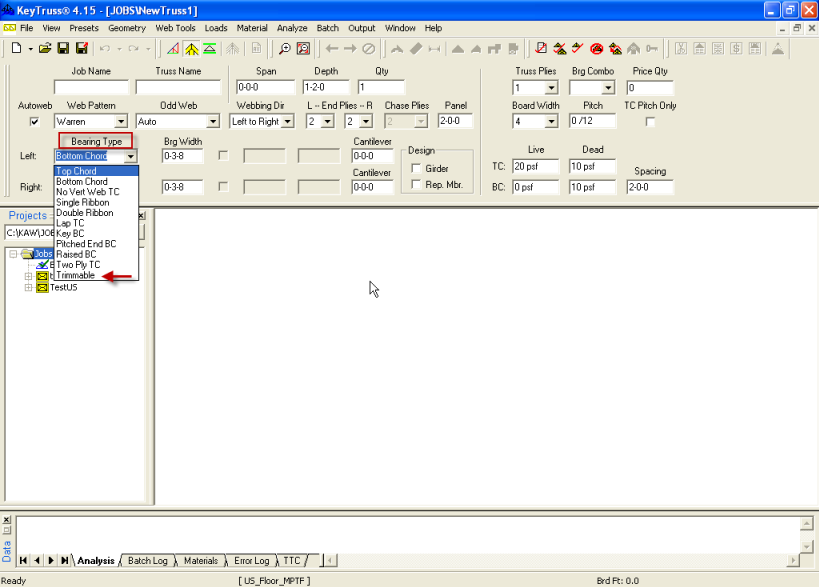

Select the trimmable from the Bearing Type drop-down.
The appropriate Trim Fit product will be added. For example, if the board width is 4 and the truss depth is 18inches, Trim Fit 42-18 will be chosen.
Note: webs have to be the same board width.
Output for Trim-able ends:

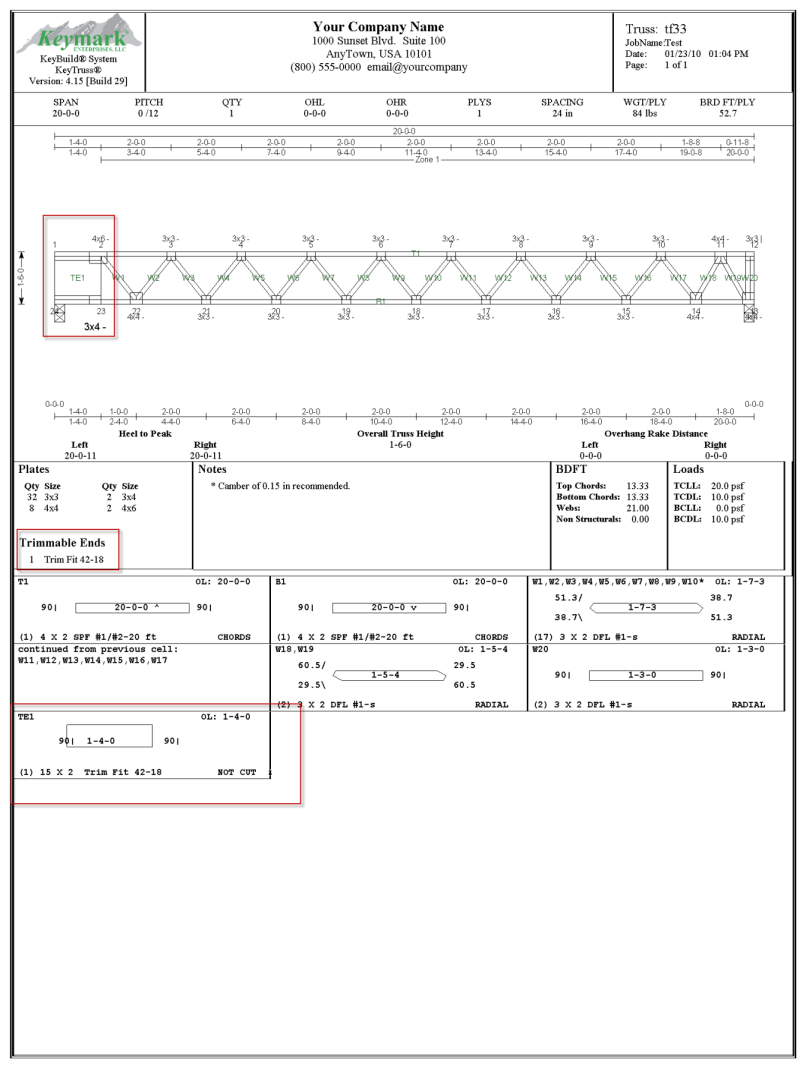

The Cut List by Truss displays the trim-able end, shows the summary (right after plate summary) and displays the piece. Note: since this piece is not sent to the saw, it will say "NOT CUT".

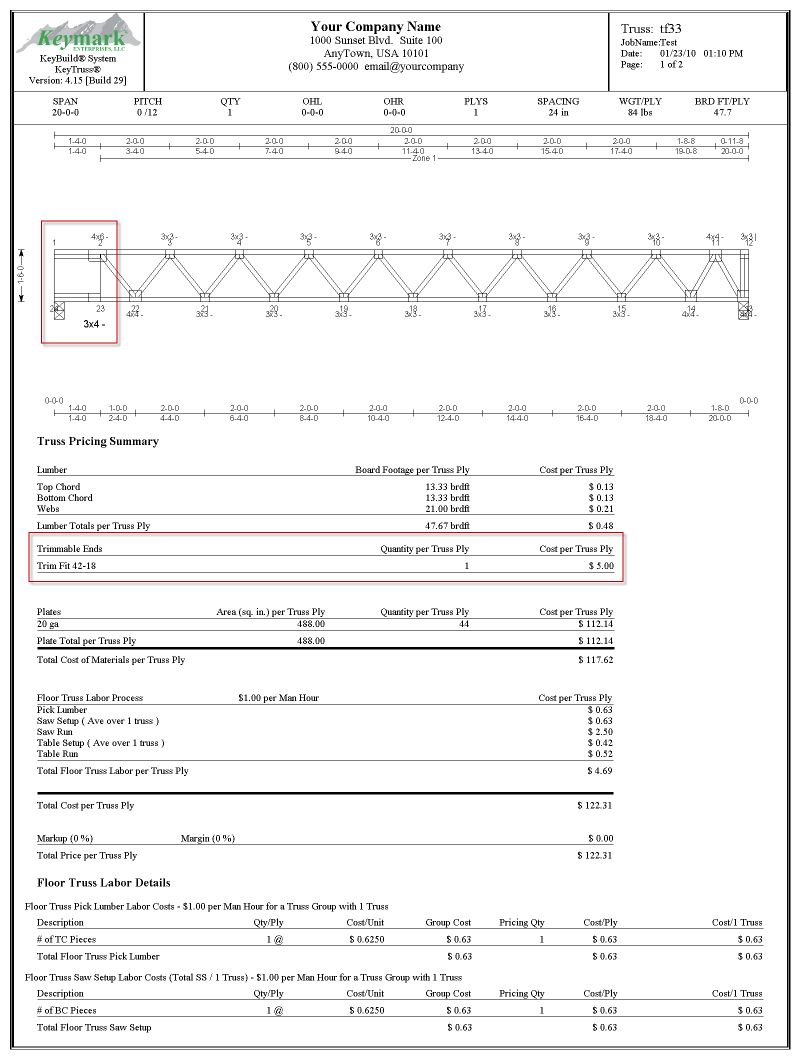

The pricing report shows Trimmable Ends and is added to the Total Cost of Materials per Truss Ply
It is also added to the Material List
New preset options for importing from Model

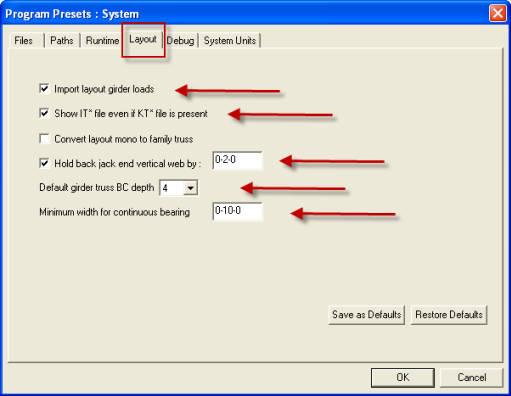

A new Layout tab has been added to Presets --> System. This tab has some new features as well as previous presets that have been moved to this tab.
Presets existing in previous verstions:
-
Import layout girder loads check box
-
Show IT* file even if KT* file is present checkbox
-
Convert layout mono to family truss check box
-
Hold back jack end vertical web by:
New presets:
-
Default girder truss BC depth
Currently girder trusses always default to the same BC material as common trusses. Girder trusses typically need a BC material deeper than the default material used for common trusses. This preset allows girder trusses to open from layout with a preset default BC depth. The default depth will display under the Board
-
Minimum width for continuous bearing
This preset allows trusses from layout with bearings of a certain minimum width to open in Keytruss as a continuous bearing. This value should not be less than 10 inches.
Bevels

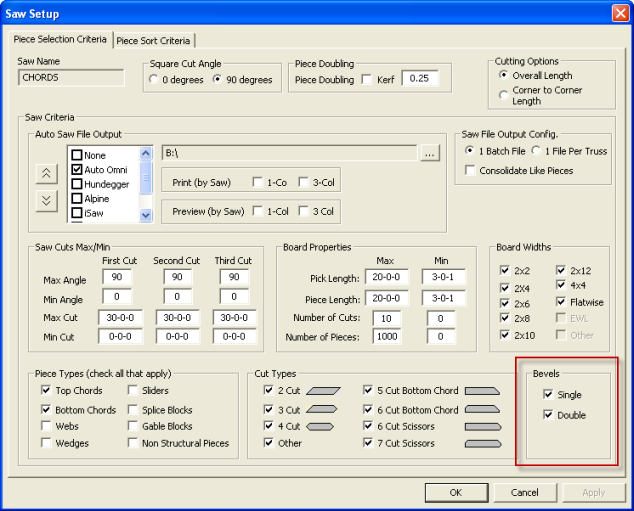

Bevels are now added as piece selection criteria for single and double bevel cuts.

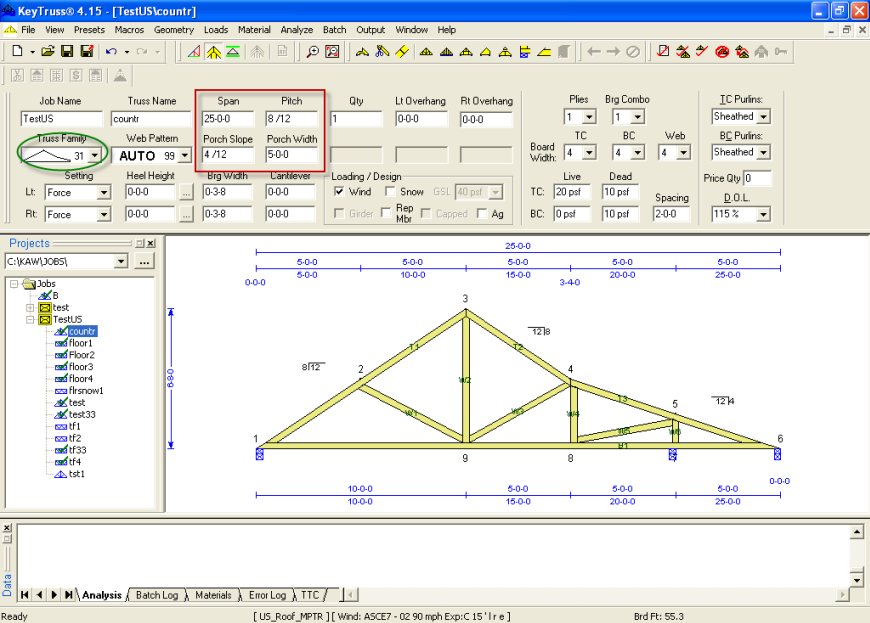

Country Porch Family
"Span" refers to the span of the truss including the porch.
"Pitch" refers to the slope coming from the LEFT HEEL and the middle TC segment.
"Porch Slope" refers to the slope coming from the RIGHT HEEL of the truss.
"Porch Width" refers to the assumed distance from the outside edge of the porch to the outside edge of the closest exterior wall. It is NOT the pitch break horizontal offset.
